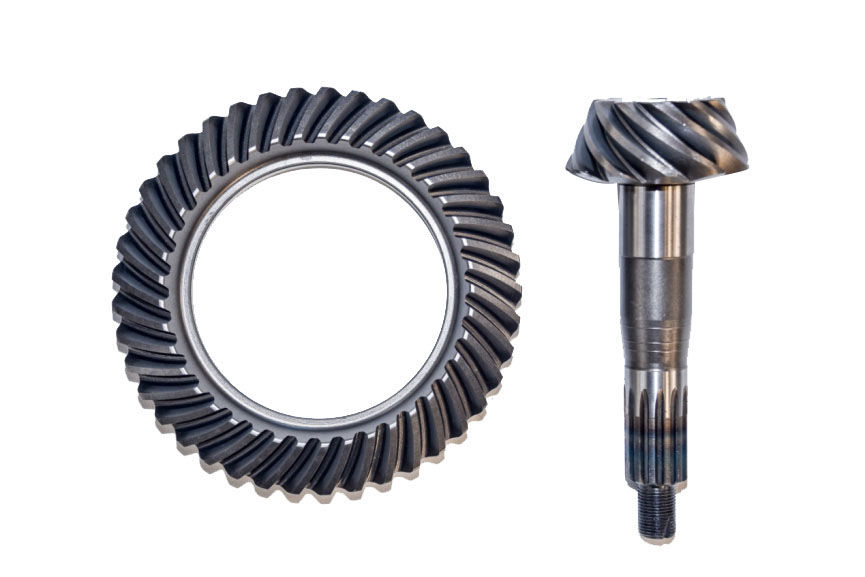

ISUZU Crown Pinions Ring & Pinion Gear Sets for ISUZU OEM 1-41210.274.0/1-41210.287.0 Spline18T 24T 37T HYDUN
Condition:New
Material:Steel
Place of Origin:Qingdao, China
Standard or Nonstandard:Standard
Description:OEM High
Color:Black
Quality:Top High
Packaging Details:1 Set per 1 carton box or to be negotiated
Shipping Port:Qingdao
Trade Terms:FOB,CIF,or CFR
Payment Terms:T/T,L/C
Lead Time :45 days or to be negotiated
Description
| ISUZU | |||
| OEM | RATIO | NW | |
| KGS | LBS | ||
| 1-41210.274.0/18TH | 7*45 | 34.5 | 76.06 |
| 1-41210.287.0/24TH | 7*45 | 34.5 | 76.06 |
| 1-41210.293.0/18TH | 6*43 | 34.5 | 76.06 |
| 1-41210.294.0/24TH | 6*43 | 34.5 | 76.06 |
| 1-41210.308.0/18TH | 7*43 | 34.5 | 76.06 |
| 1-41210-.408.0/24TH | 7*43 | 34.5 | 76.06 |
| 1-41210.452.0/24TH | 6*41 | 34.5 | 76.06 |
| 1-41210.460.0/18TH | 6*45 | ||
| 1-41210.471.0/24TH | 6*45 | ||
| 1-41210.473.0/18TH | 6:41 | 34.5 | 76.06 |
| 1-41210.***.0/18TH | 8*39 | ||
| 1-41210.***.0/24TH | 8*39 | ||
| 1-41210.***.0/18TH | 8*41 | ||
| 1-41210.***.0/24TH | 8*41 | ||
| 1-41210.485.0 | 7*41 | ||
| 1-41210-039-0/18TH | 6*45 | 28.1 | 61.95 |
| 1-41210-184-0/18TH | 6*45 | 28.1 | 61.95 |
| 1-41210-206-1 | 7*41 | 22.75 | 50.16 |
| 1-41210-206-1B | 7*41 | 17.5 | 38.58 |
| 1-41210-206-2 | 7*43 | 22.75 | 50.16 |
| 1-41210-206-2B | 7*43 | 17.5 | 38.58 |
| 1-41210-276-0/6T | 6*39 | 25.8 | 56.88 |
| 1-41210-276-0/6T | 7*43 | 25.8 | 56.88 |
| 1-41210-322-5 | 6*37 | 36.4 | 80.25 |
| 1-41210-462-0/37TH | 6*41 | 34 | 74.96 |
| 27301-61J00 | 8*43 | 4.1 | 9.04 |
| 8-94225-258-1 | 9*41 | 3.85 | 8.49 |
| 8-94458-263 | 10*43 | 4.55 | 10.03 |
| 8-97023-310 | 7:43 | 10.2 | 22.49 |
| 8-97023-639 | 6:39 | 10.2 | 22.49 |
| 8-97023-741 | 7*41 | 10.2 | 22.49 |
| 8-97023-839 | 8*39/ 6*41 | 10.2 | 22.49 |
| 8-97047-092 | 6*41 | 15.95 | 35.16 |
| 8-97047-168 | 6*39 | 16.24 | 35.80 |
| 8-97063573-0 | 10*41 | 4 | 8.82 |
| 8-97065-663 | 11*41 | 4.34 | 9.57 |
| 8-97083-126-0 | 7*41 | 16 | 35.27 |
| Material | Conventional steel | 20CrMnTiH |
| Non-conventional steel | According to customer’s requirements | |
| Direction | Right hand | |
| OEM & ODM Service | Available | |
| Tolerance Control | Outer Diameter | ±0.005 mm |
| Length Dimension | ±0.05 mm | |
| Teeth Accuracy | Class 5 | |
| Heat Treatment | Quenching & Tempering , Carburizing & Quenching , High-frequency Hardening , Carbonitriding …… | |
| Surface Treatment | Blacking , Polishing , Anodization , Chrome Plating , Zinc Plating , Nickel Plating…… | |
| Standard | Japanese ,American ,German or Chinese Standard . | |
| Design Software | Auto CAD, Solid Works and Gleason gear design software | |
| Application | Applicable in speed reducer/gear box/transmission | |
